CNG RC

Even in a small way,
works great

Designed to recompress previously treated and filtered natural gas and biomethane. These compressors are designed for refueling natural gas-fueled vehicles. They are suitable for domestic or small fleet use. The use of the products in the CNG RC is simple and safe, they are equipped with an electromechanical remote control panel with 5 meters of cable and an automatic stop function when the tank is full.

Watch it closely

Simplicity comes as standard

Imagine having a compressor capable of great performance and endowed with extraordinary robustness. What would all this be without absolute simplicity in operating it? We believe that’s what innovation is for: to make it simpler.

And now for all the details

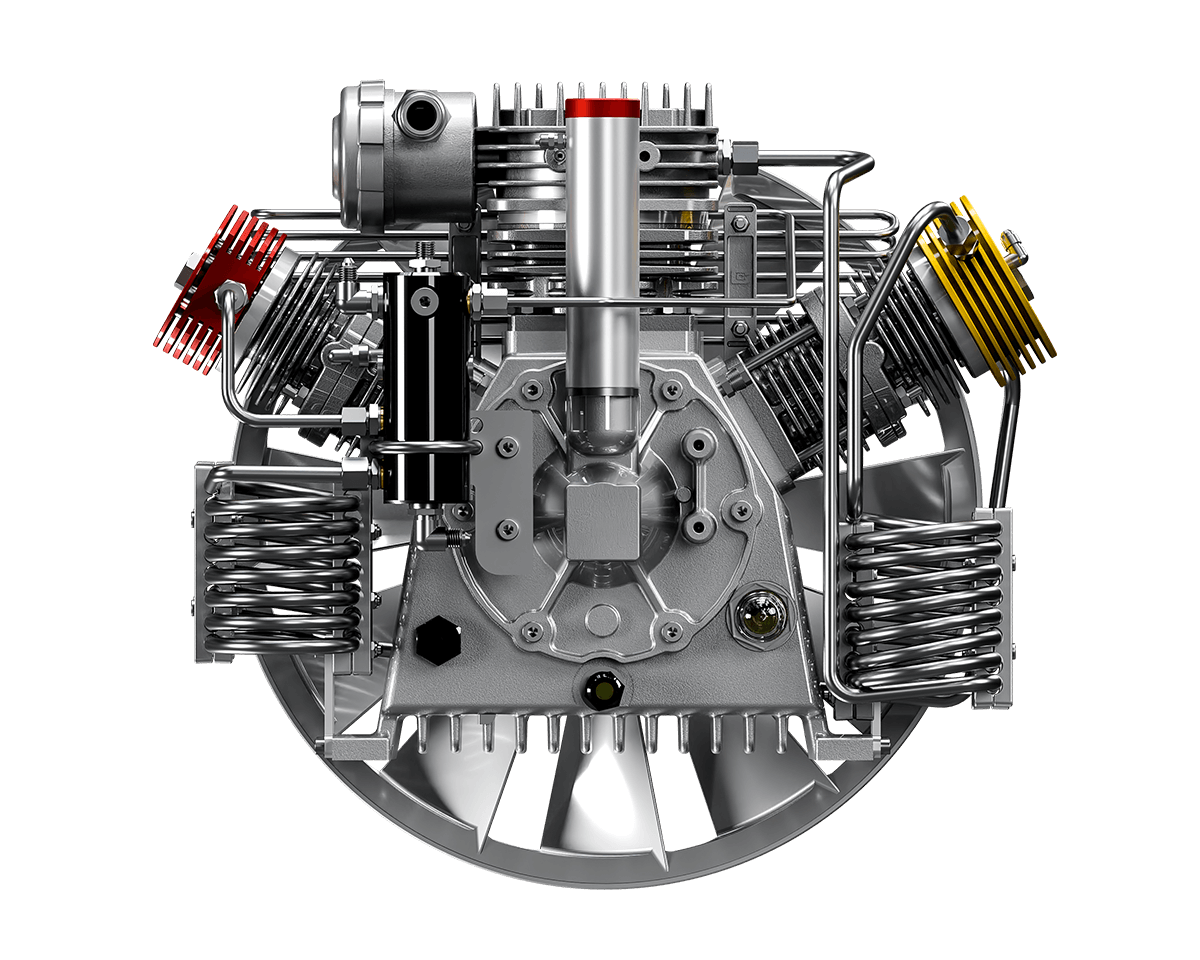

3-stage high pressure pumping unit for methane
  • Aluminum monoblock
  • Spray lubrication with tang immersed in oil
  • Suction filter: 10 um
  • Pipes, fittings and nuts made of AISI 316 stainless steel
  • Safety valves after each compression stage in bell
  • Die-cast aluminum cylinders with nicasil barrel coating
  • Stainless steel second and third stage valves
  • Forged aluminum connecting rods
  • Forged steel crankshaft
  • Roller Bearings for intensive work
  • Second and third stages with thrust pads to eliminate lateral forces on the pistons
  • Hardened steel third stage with 5 segments made of special cast iron
  • Filter system Maxifilter

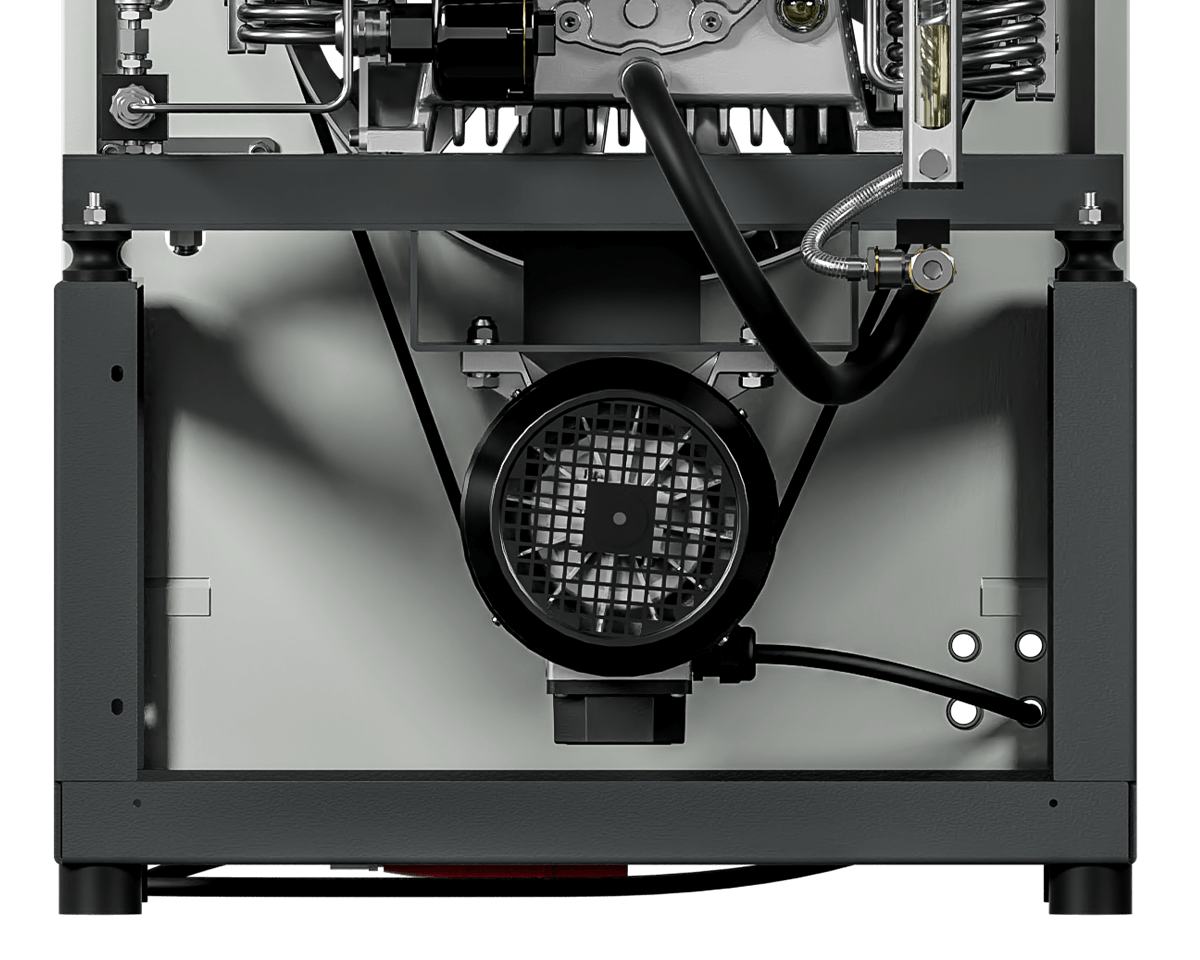

Electric motor

One of the basic parts of the compressor: the motor transfers motion to the pumping unit through the belt. A 3 kW single-phase or 3 to 5.5 kW three-phase electric motor is available on this model.

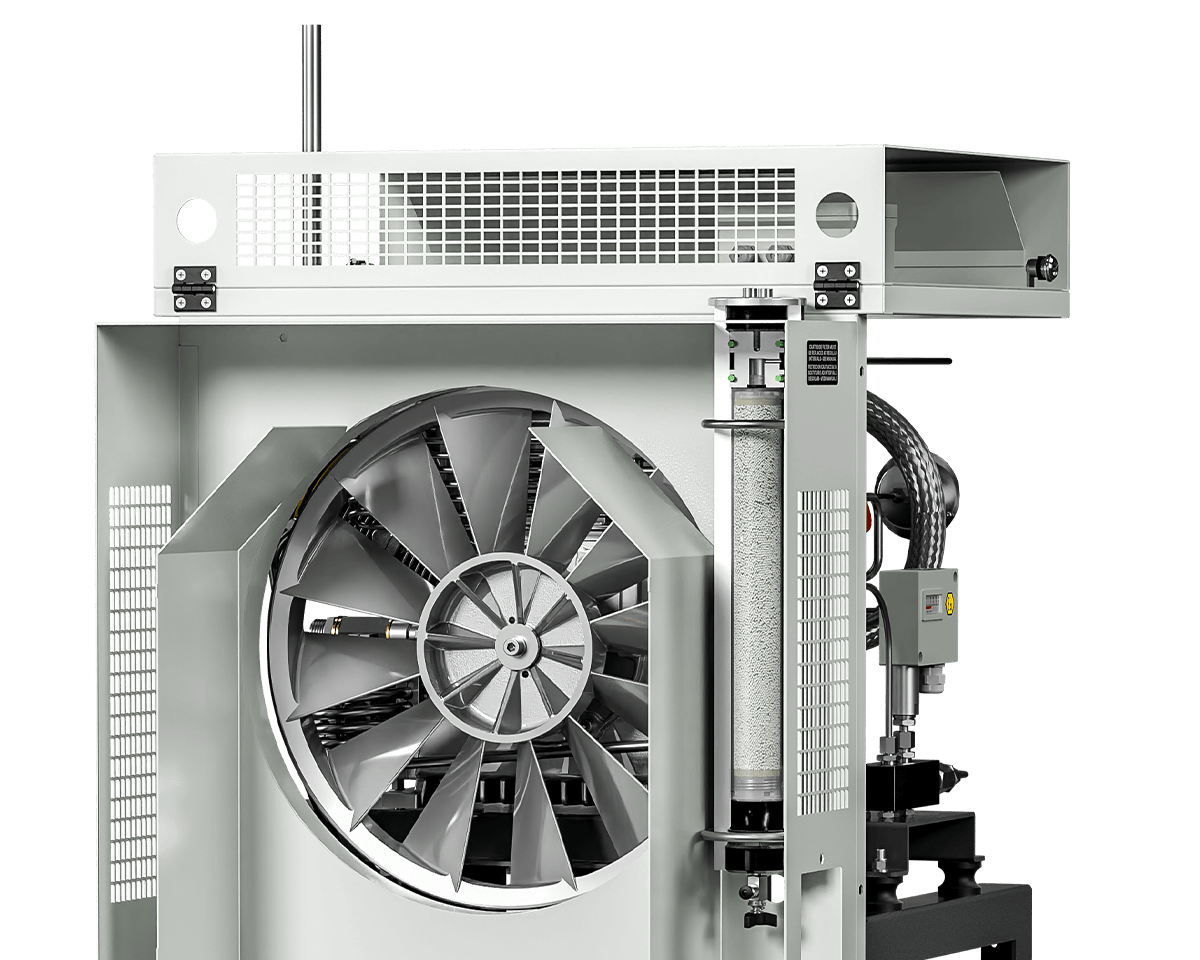

Purification system Maxifilter

The purification system Maxifilter enables reliable treatment of breathing air according to DIN EN 12021 when using original filter cartridges. Placed after the compressor 2nd and 3rd stage separator and before the pressure maintenance valve to create a first fundamental barrier against moisture. Filter capacity with inlet air at 20°C and 200 bar is 890 m³.

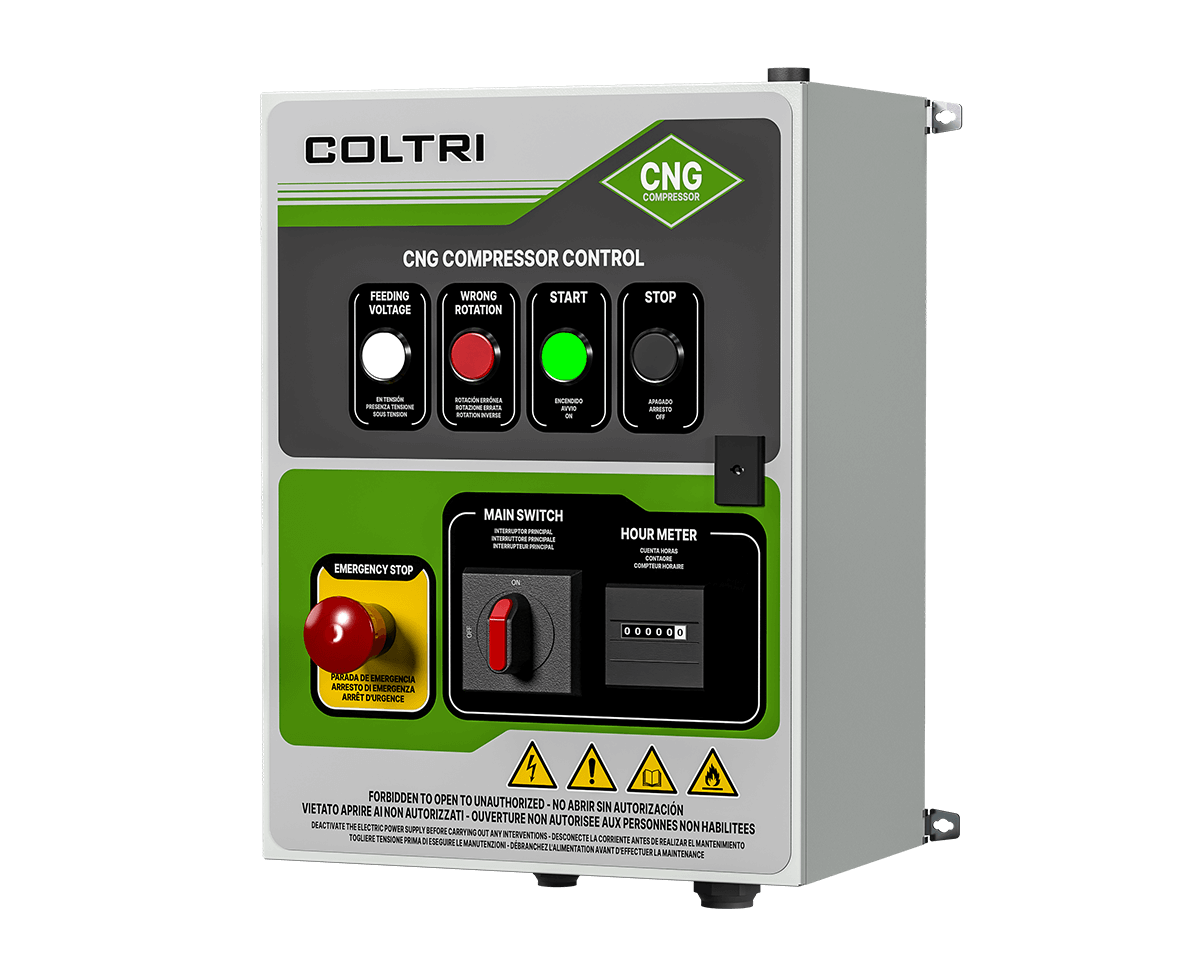

Electrical cabinet
  • Control panel
  • Emergency button
  • ON/OFF switch
  • Operating hour meter
  • Voltage presence indicator light
  • Wrong direction indicator light
  • Power button
  • Stop button
Frame

Silenced steel cab chassis with scratch-resistant powder coating in RAL 7016 anthracite and RAL 7035 gray.

With them you are safe

Compressors CNG Coltri put safety first: they are equipped with sensors that stop the machine in case of leakage; and they are equipped with solenoid valves at the outlet and inlet to regulate machine and system operation.

Standard Equipment

Input filter
Autostop
Filter system Maxifilter
Vent pipe
NGV1 natural gas refueling gun with direct action
Filling hose 4.5 m
Frame color Anthracite RAL 7016 and Gray RAL 7035

Technical specifications.

Type of gas

Natural Gas – Methane

Suction pressure

Max. 200 millibars

Pressure rating

250 bar

Operating pressure

200 bar / 250 bar

Max working pressure

200 bar / 250 bar

Allowable temperature range

-10° C ÷ +40° C

Allowable altitude range

0 ÷ 1,500 m SLM

Maximum allowed inclination

6°

Design

Soundproof frame

Operating voltage, standard

220 V, 50Hz / 230 V, 60 Hz / 400 V, 50 Hz

Other operating voltages
On three-phase electric motors at 60 hz power (kW / hp) increase by 20%.

230 V, 50 Hz / 400 V, 60 Hz / 480 V, 60 Hz

Oil

Coltri ST 755 Synthetic Oil

Oil change interval

1 year / 1,000 h

Frame

Steel – Color RAL 7035, RAL 7016 – Powder coated – Scratch resistant

Compressor

Pump group flow rate
Measured while filling a 10-liter cylinder from 0-200 bartolerance +/- 5% at + 20 °C room temperature.
85 EM

85 l/min
5.1 m3/h
3 CFM

85 ET

85 l/min
5.1 m3/h
3 CFM

170 ET

170 l/min
10.2 m3/h
6 CFM

266 ET

266 l/min
16 m3/h
9.4 CFM

Purification system

Maxifilter

Cooling air flow
85 EM

2.400 m3/h

85 ET

2.400 m3/h

170 ET

2.400 m3/h

266 ET

2.400 m3/h

Weight
Standard model. Dimensions and weight may vary depending on accessories..
85 EM

160 kg
353 lb

85 ET

160 kg
353 lb

170 ET

180 kg
397 lb

266 ET

180 kg
397 lb

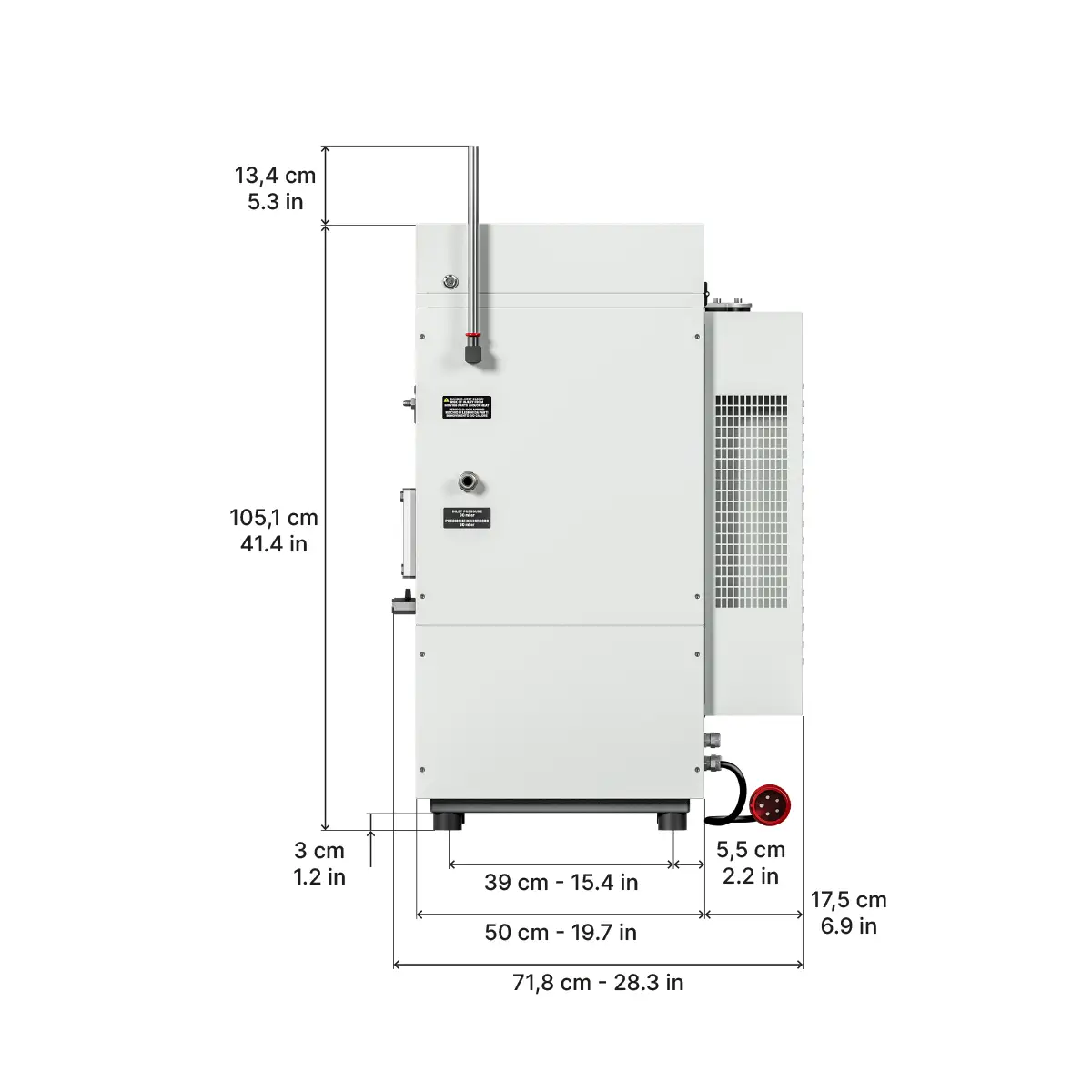

Dimensions
(W x D x H)

70 x 67 x 105 cm
27.5 x 26.4 x 41.3 in

Noisiness

Engine

Power
85 EM

3 kW
4 Hp

85 ET

3 kW
4 Hp

170 ET

4 kW
5.4 Hp

266 ET

5.5 kW
7.3 Hp

Engine type
85 EM

Elettrico monofase

85 ET

Elettrico trifase

170 ET

Elettrico trifase

266 ET

Elettrico trifase

Operating voltage/frequency
Different voltage and frequency available upon request.
85 EM

220 V, 50 Hz

85 ET

230 V, 60 Hz

170 ET

400 V, 50 Hz

266 ET

400 V, 50 Hz

Rated current
85 EM

18 A

85 ET

13.3 A

170 ET

15 A

266 ET

21.8 A

Engine RPM (RPM)
85 EM

2.850

85 ET

3.410

170 ET

2.840

266 ET

2.850

Protection class

IP55
