CNG Booster VII

LINE CNG

Scroll Down

Maximum efficiency,
minimum emissions

The innovative Booster series CNG Booster VII can compress up to 250 bar of previously treated and filtered natural gas and biomethane. They are designed and developed for professional use due to their 4 compression stages and low RPM. The CNG Booster VII have a flow rate that can range from 330 to 750 l/min, providing a high-performance power range. The remote control panel, supplied with a 5-meter cable, provides all indications to operate in maximum safety. Included is the innovative Hyperfilter filter system with 2 molecular sieve cartridges.

Watch it closely

Simplicity comes as standard

Imagine having a compressor capable of great performance and endowed with extraordinary robustness. What would all this be without absolute simplicity in operating it? We believe that’s what innovation is for: to make it simpler.

And now for all the details

4-stage high pressure pumping unit for methane

Aluminum monoblock
Forced lubrication with low-pressure gear pump
Input filter
Pipes, fittings and nuts made of AISI 316 stainless steel
Intermediate condensate separators after the second and third stages
High-pressure final condensate separators
Safety pressure switch after each compression stage
Special cast iron cylinders with low roughness lapping
Forged aluminum connecting rods
Forged steel crankshaft
High flow valves for the first, second and third stage
Roller Bearings for intensive work
Hardened steel fourth stage with 6 special cast iron piston rings
Second and third stages with thrust pads to eliminate lateral forces on the pistons
Filter system Hyperfilter

Electric motor

One of the key parts of the compressor: the motor transfers motion to the pumping unit through the belt. A three-phase electric motor from 9 to 11 kW is available on this model.

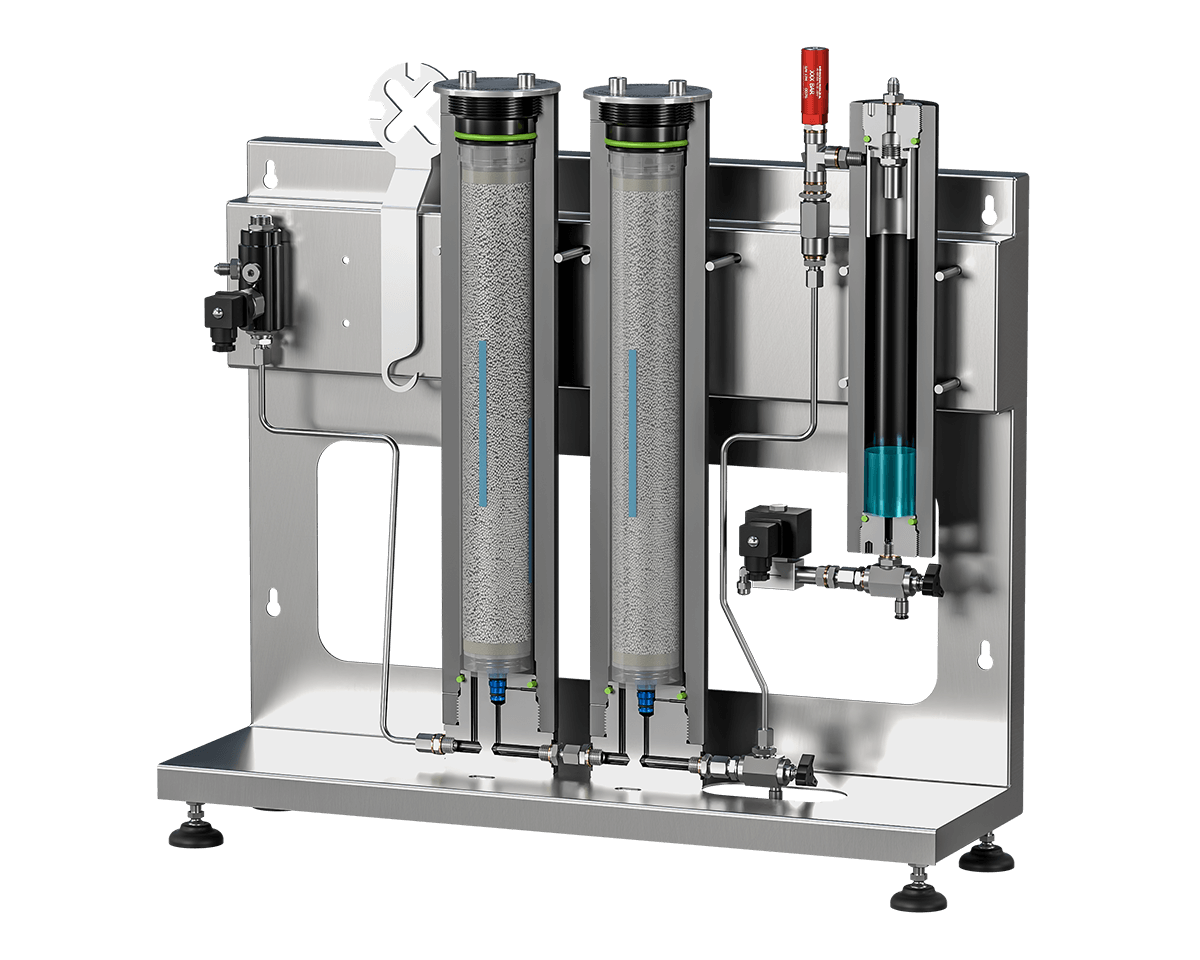

Purification system Hyperfilter

Placed after the last compressor separator and before the pressure maintenance valve, the purification system Hyperfilter enables reliable treatment of the breathing air, according to DIN EN 12021¹ when using original filter cartridges. The separator present between the 2nd and 3rd stages of the purification circuit makes it possible to extract as much moisture as possible. The filtering capacity with inlet air at 20°C and 200 bar is 3,050 m³.

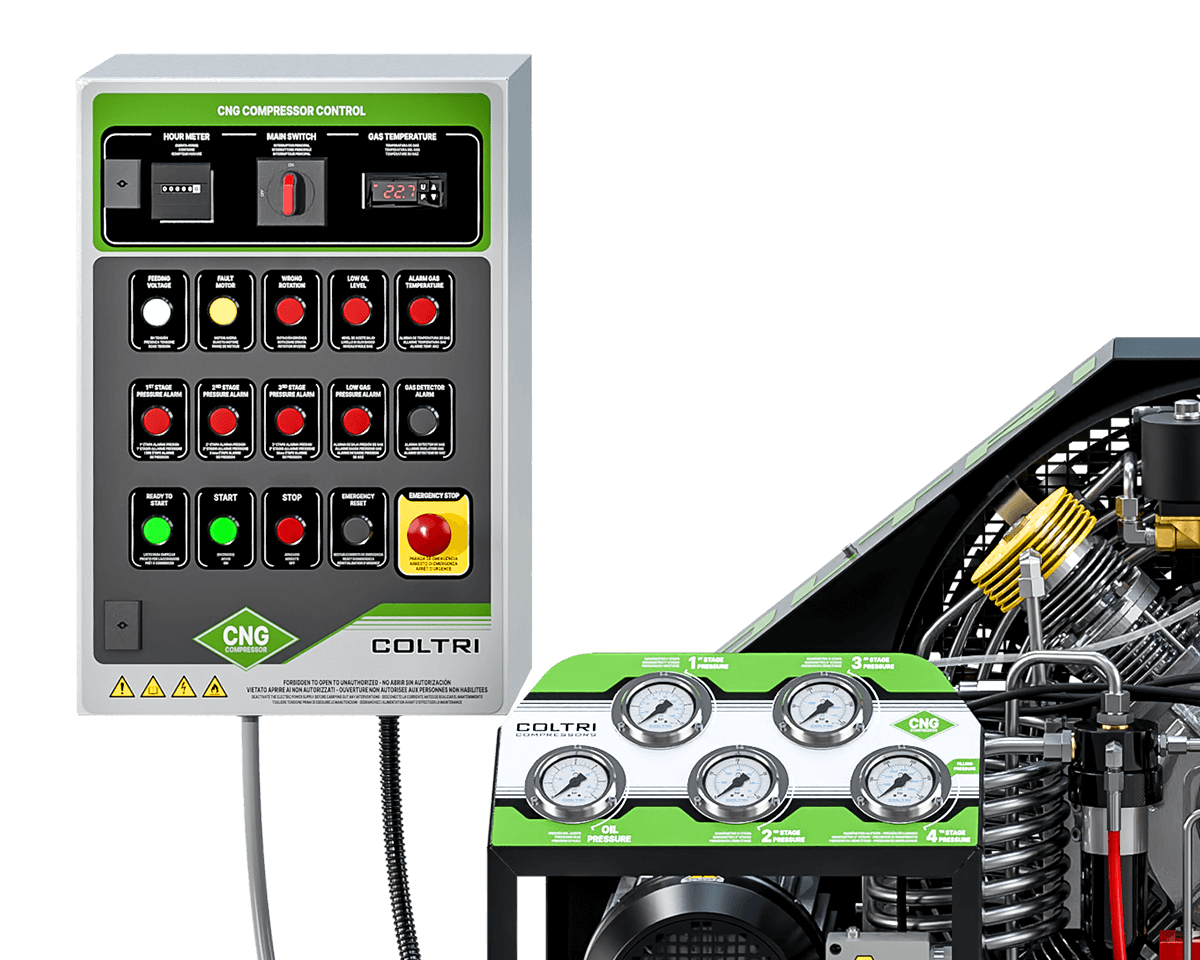

Electrical cabinet

Control panel
Emergency button
ON/OFF switch
Operating hour meter
Gas temperature
Voltage presence indicator light
Wrong direction indicator light
Oil level sight glass
Gas temperature alarm indicator light
Pressure alarm light 1st, 2nd and 3rd stage
Suction pressure alarm light
Compressor light at work
Power button
Stop button

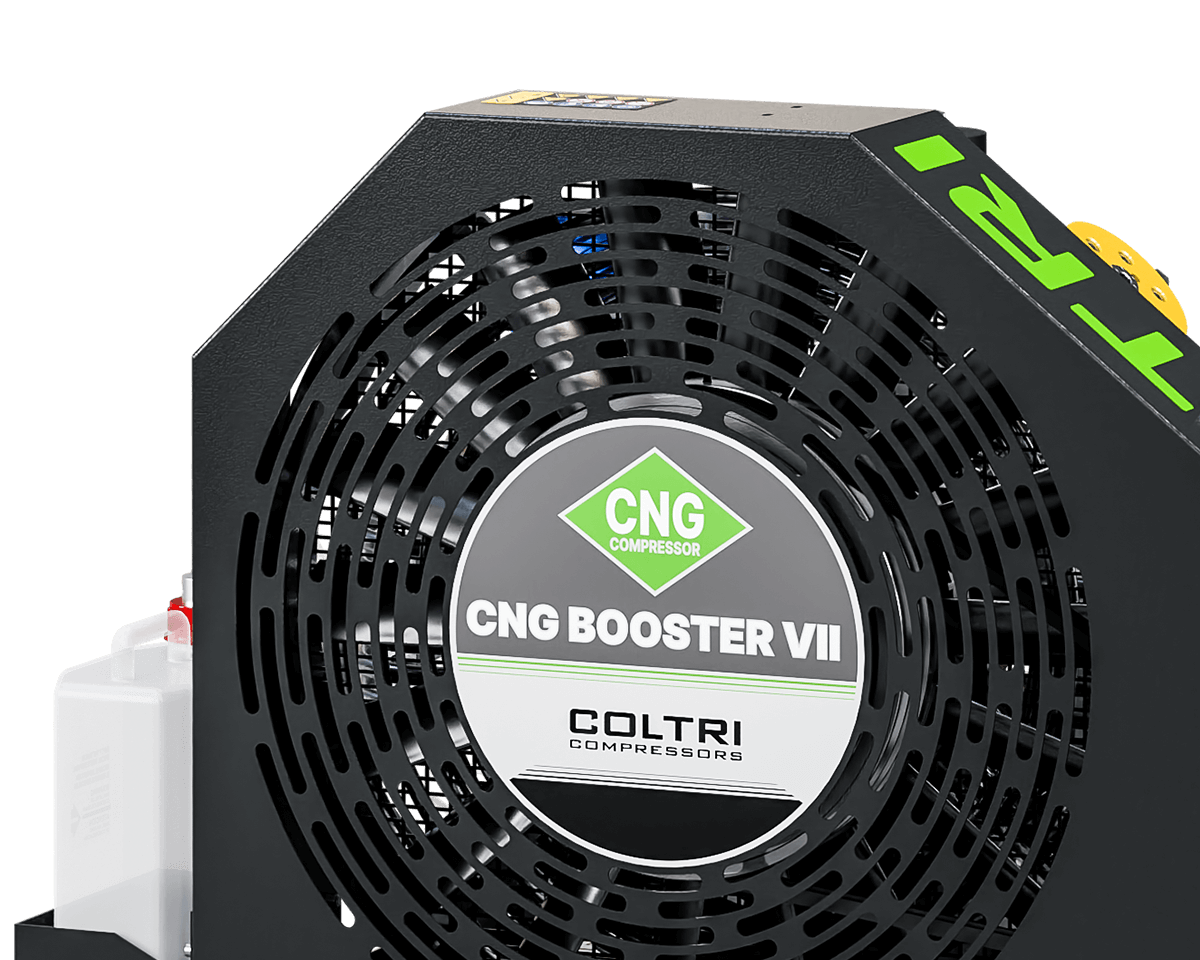

Frame

Open frame made for easy maintenance and transportability. Tilting motor carrier plate ensures constant V-belt tension. Protective casing made of thermo-formed material channels cooling air over the cylinders and inter-stage pipes, ensuring high compression efficiency.

Control console equipped with inter-stage pressure gauges, internal temperature indicator, presence and wrong phase sequence alarm, oil shortage alarm, and run stop and manual condensate drain controls allow easy compressor operation and maintenance. Made of steel with scratch-resistant powder coating in RAL 9005 black.

4-stage high pressure pumping unit for methane

Aluminum monoblock
Forced lubrication with low-pressure gear pump
Input filter
Pipes, fittings and nuts made of AISI 316 stainless steel
Intermediate condensate separators after the second and third stages
High-pressure final condensate separators
Safety pressure switch after each compression stage
Special cast iron cylinders with low roughness lapping
Forged aluminum connecting rods
Forged steel crankshaft
High flow valves for the first, second and third stage
Roller Bearings for intensive work
Hardened steel fourth stage with 6 special cast iron piston rings
Second and third stages with thrust pads to eliminate lateral forces on the pistons
Filter system Hyperfilter

Electric motor

One of the key parts of the compressor: the motor transfers motion to the pumping unit through the belt. A three-phase electric motor from 9 to 11 kW is available on this model.

Purification system Hyperfilter

Electrical cabinet

Control panel
Emergency button
ON/OFF switch
Operating hour meter
Gas temperature
Voltage presence indicator light
Wrong direction indicator light
Oil level sight glass
Gas temperature alarm indicator light
Pressure alarm light 1st, 2nd and 3rd stage
Suction pressure alarm light
Compressor light at work
Power button
Stop button

Frame

With them you are safe

Compressors CNG Coltri put safety first: they are equipped with sensors that stop the machine in case of leakage; and they are equipped with solenoid valves at the outlet and inlet to regulate machine and system operation.

Standard Equipment

Input filter

Remote control panel

Hitchhiking

Dual filter system Hyperfilter certified PED with molecular sieve

NGV1 natural gas refueling gun with direct action

Filling hose 4.5 m

Low pressure switch at gas inlet

Methane gas detector

Oil pump

Frame color Black RAL 9005

Technical specifications.

Type of gas

Natural Gas – Methane

Suction pressure

2 bar – 5 bar

Pressure rating

250 bar

Operating pressure

200 bar / 250 bar

Max working pressure

200 bar / 250 bar

Allowable temperature range

-10° C ÷ +40° C

Allowable altitude range

0 ÷ 1.500 m SLM

Maximum allowed inclination

15°

Design

Open

Operating voltage, standard

400 V, 50 Hz

Other operating voltages

On three-phase electric motors at 60 hz power (kW / hp) increase by 20%.

230 V, 50 Hz / 230 V, 60 Hz / 400 V, 50 Hz / 400 V, 60 Hz / 690 V, 60 Hz

Oil

Olio sintetico Coltri ST 755

Oil change interval

1 year / 1,000 h

Frame

Steel – Color Black RAL 9005 – Powder coated – Scratch resistant

Compressor

Pump group flow rate

9 KW

From 330 l/min a 600 l/min
From 19 m³/h a 36 m³/h
From 10.6 CFM a 21.2 CFM

11 KW

From 350 l/min a 750 l/min
From 21 m³/h a 45 m³/h
From 12.4 CFM a 26.5 CFM

Purification system

Hyperfilter

Cooling air flow

9 KW

2.400 m³/h

11 KW

2.400 m³/h

Weight

Standard model. Dimensions and weight may vary depending on accessories..

9 KW

225 kg
496 lb

11 KW

225 kg
496 lb

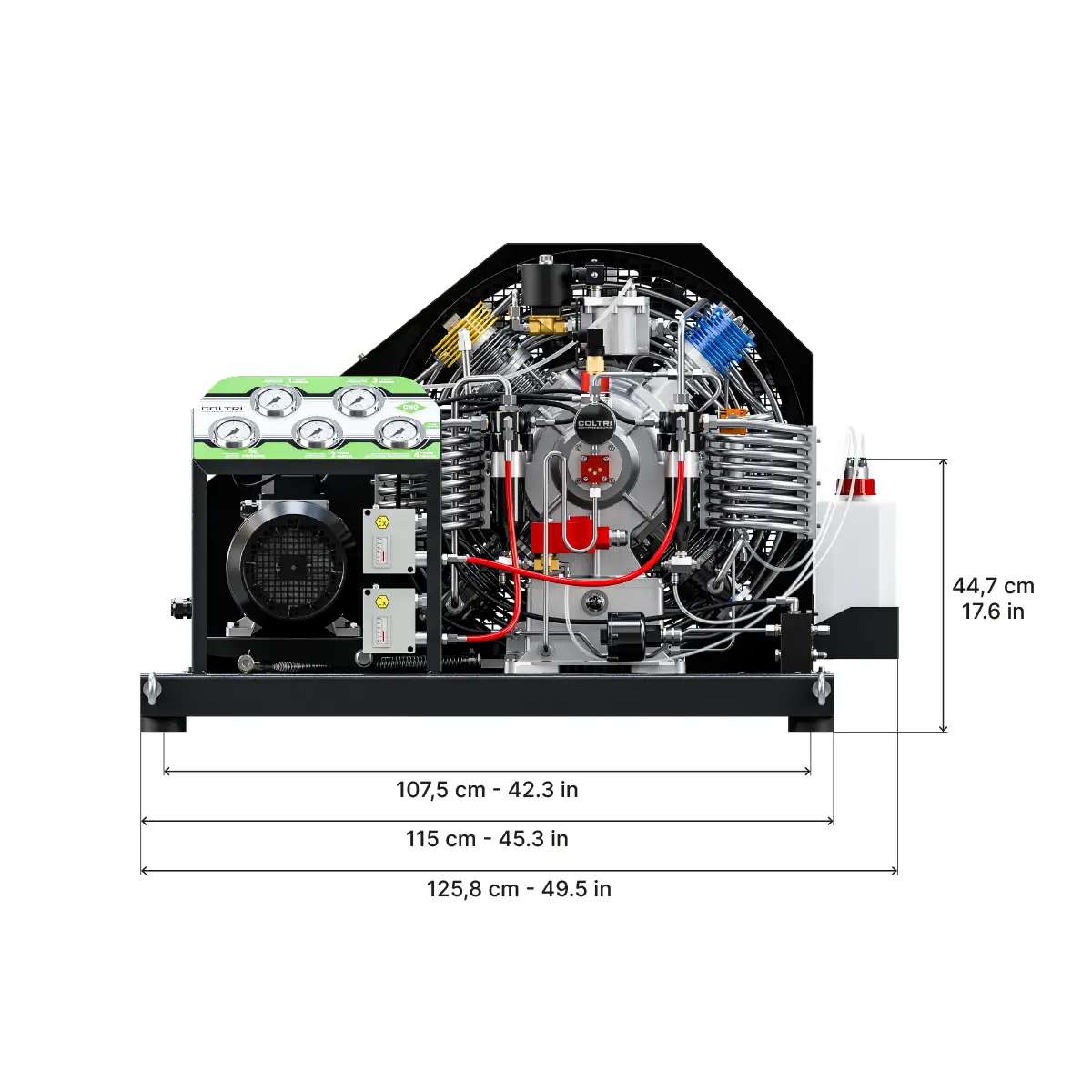

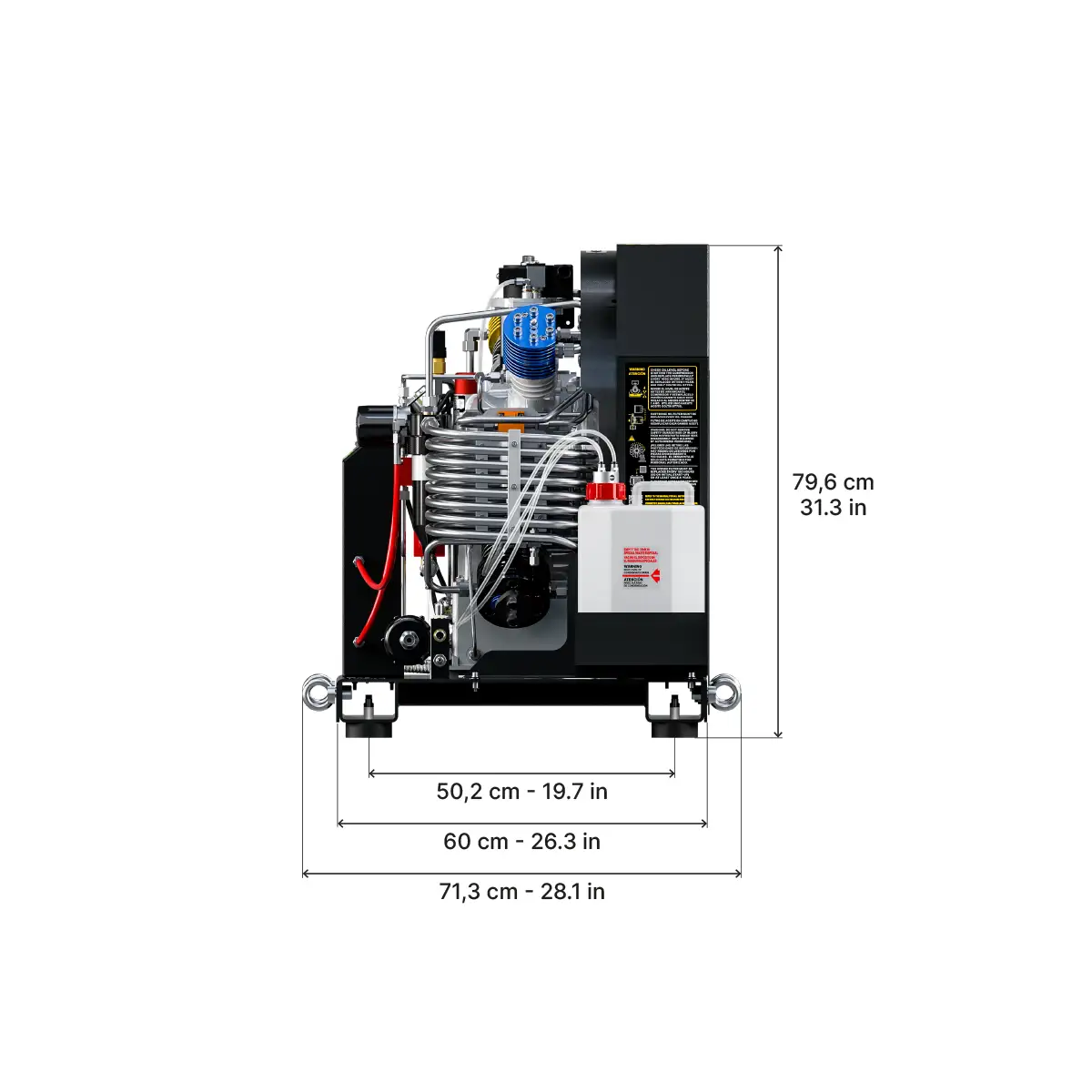

Dimensions

(W x D x H)

115 x 60 x 79.6 cm
45.3 x 23.6 x 31.3 in

Noisiness

Engine

Power

9 KW

9 kW
12 Hp

11 KW

11 kW
14 Hp

Engine type

9 KW

Three-phase electric

11 KW

Three-phase electric

Operating voltage/frequency

Different voltage and frequency available upon request.

9 KW

400 V, 50 Hz

11 KW

400 V, 50 Hz

Rated current

9 KW

18.8 A

11 KW

20 A

Engine RPM (RPM)

9 KW

2.880

11 KW

2.910

Protection class

IP55

LINE CNG

CNG Booster VII

Maximum efficiency,minimum emissions

Simplicity comes as standard

Imagine having a compressor capable of great performance and endowed with extraordinary robustness. What would all this be without absolute simplicity in operating it? We believe that’s what innovation is for: to make it simpler.

With them you are safe

Compressors CNG Coltri put safety first: they are equipped with sensors that stop the machine in case of leakage; and they are equipped with solenoid valves at the outlet and inlet to regulate machine and system operation.

Standard Equipment

Technical specifications.

Type of gas

Suction pressure

Pressure rating

Operating pressure

Max working pressure

Allowable temperature range

Allowable altitude range

Maximum allowed inclination

Design

Operating voltage, standard

Other operating voltages

Oil

Oil change interval

Frame

Compressor

Pump group flow rate

9 KW

11 KW

Purification system

Cooling air flow

9 KW

11 KW

Weight

9 KW

11 KW

Dimensions

Noisiness

Engine

Power

9 KW

11 KW

Engine type

9 KW

11 KW

Operating voltage/frequency

9 KW

11 KW

Rated current

9 KW

11 KW

Engine RPM (RPM)

9 KW

11 KW

Protection class
